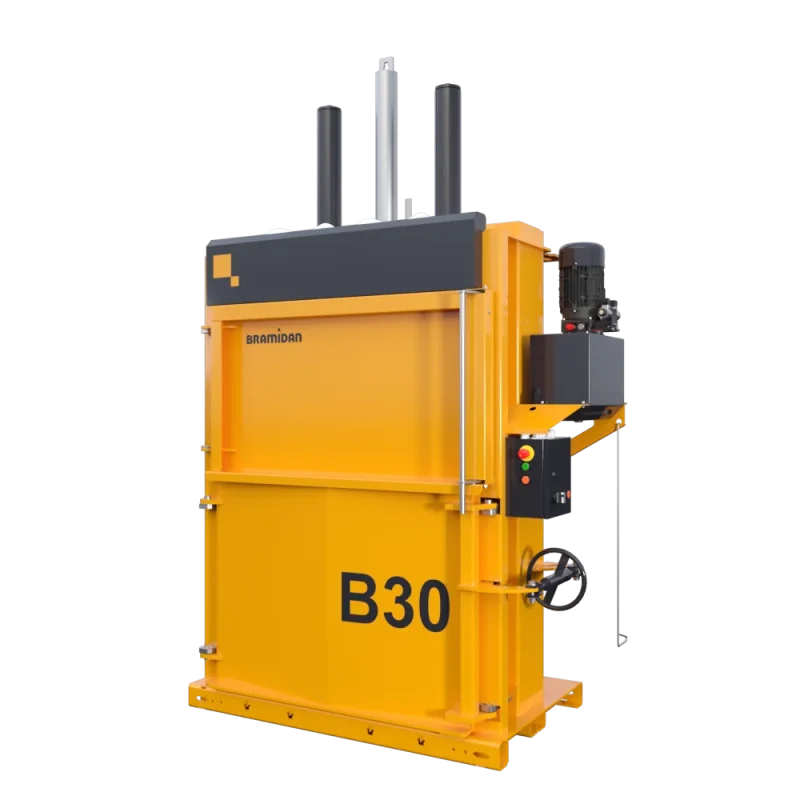

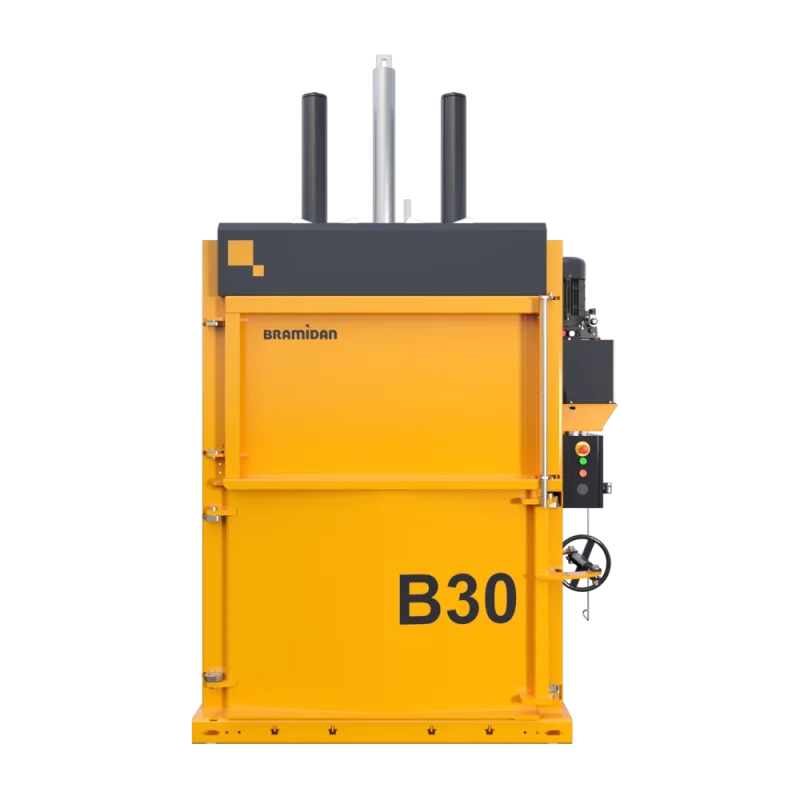

VERTICAL BALER
Baler B30
The B30 is a flexible and hardworking machine for many types of recyclables. The wide filling opening makes it easy to fill in larger boxes and other bulky waste.
Colour
RAL 1007
RAL 3016
RAL 5002
RAL 5017
RAL 5021
RAL 6018
RAL 6032
RAL 7015
RAL 7035
RAL 9003
*Bramidan yellow at no extra cost. Other colors can be ordered at an additional cost.
Add to your quote
VERTICAL BALER
Baler B30
Gain remote access to your baler with our intelligent fleet monitoring system, BRA-IN. You see balers full, service status, number of collections etc. and optimize your Total Cost of Ownership.
BRA-IN, monitor your balers intelligently
Order your baler in any available RAL colour. Custom colour is not available for the top and side covers, the press plate, and the spindle. These stay our standard grey.
Other baler colours available

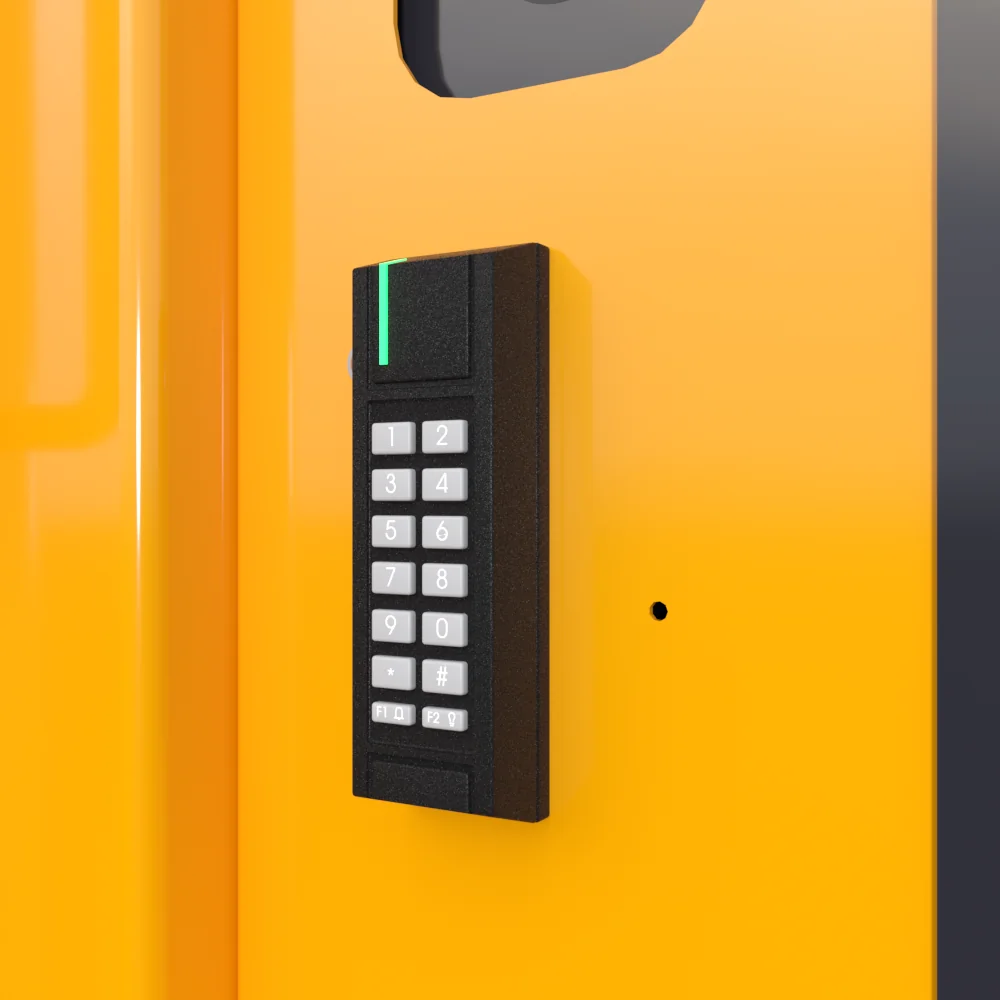

Prevent unauthorized people from operating your baler. The baler is unlocked with a personal PIN code or a magnetic key tag.
Control who operates your baler with an auto lock

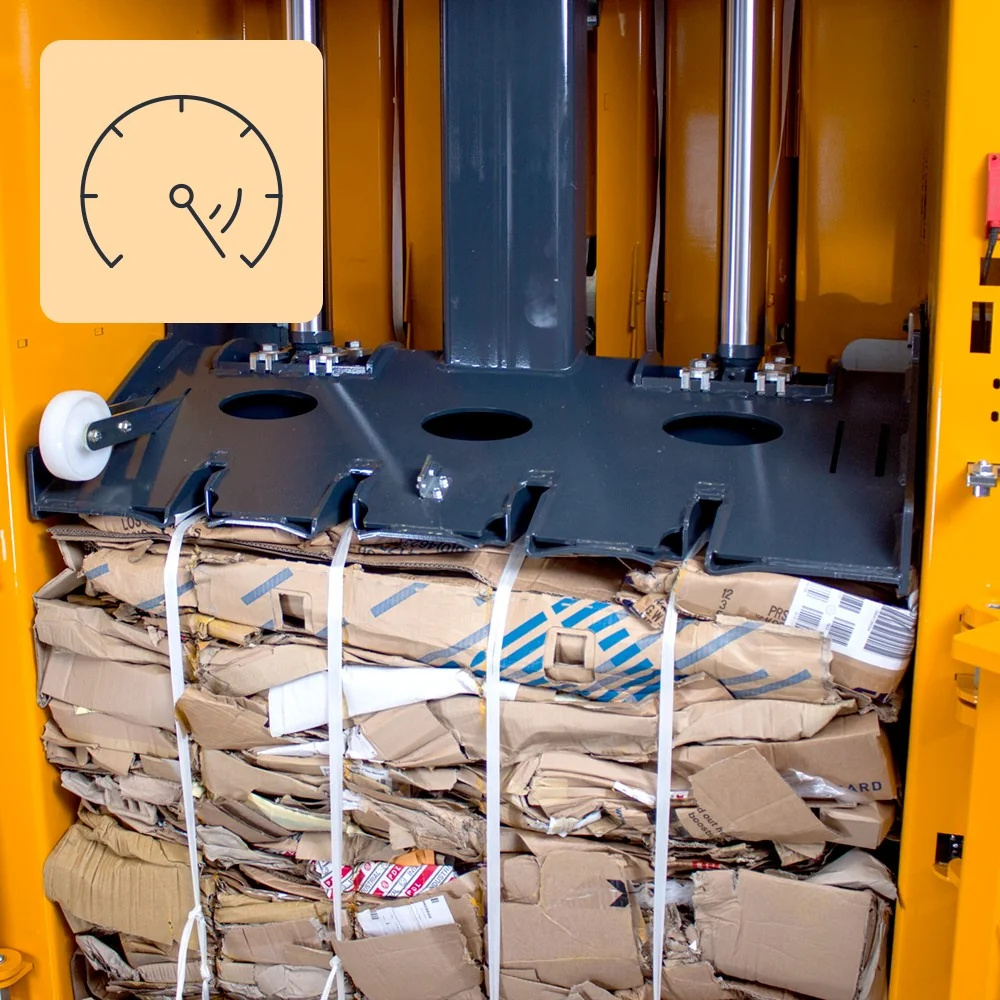

Handle your cardboard boxes or plastic waste quickly. Get a faster press cycle with a regenerative circuit.
Regenerative circuit speeds up baler cycle time

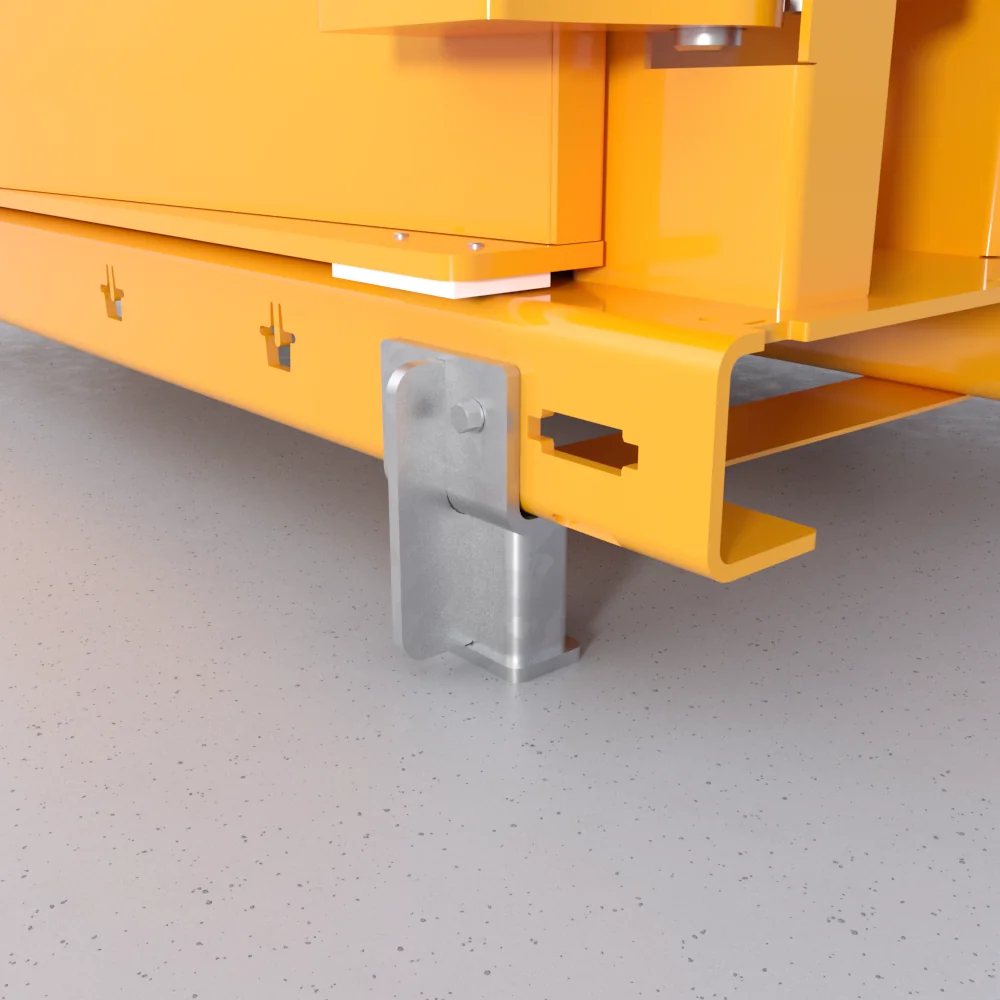

Install feet under your baler to lift it from the ground. Ideal if you need to lift the baler from the front instead of from the side.
Baler feet lets you lift your baler from the front
Quote details
VERTICAL BALER
Baler B30
Overview
How to operate
Safety
Technical specifications
Extra wide and easy to fill
B30 is a wide baler. It is very easy to fill with larger boxes and other bulky waste.
Simple operation
A small light on the front flashes when a bale is ready. This reduces the risk of overfilling the chamber. The bale is ejected automatically by pressing two buttons simultaneously.
B30 – Handling bulky waste:
- Wide opening and large chamber
- Retainers prevent compacted material from expanding
- Strap roles in the front means no going behind the machine
- Bale straps are easily cut with the mounted knife
- Full chamber indicator
- Powder Coating provides durable finish in many colors
How does the B30 baler work?
Time-saving and easy waste handling
- Fill your plastic or cardboard waste into the baler.
- A full-light indicator tells you when the chamber is full.
- Tie off and eject the finished bale.
- Remove the bale and store until collection.
The B30 baler is safe and easy to operate:
Our equipment has the highest level of safety – don’t settle with less!
| Bale weight cardboard (kg) | 280-350 |
| Bale weight plastic foil (kg) | 350-450 |
| Press force (t) | 30 |
| Power supply | 3x400V 50Hz 16A |
| Motor (kW) | 4.0 |
| Noise Level (dB) | 62-64 |
| Screen 40 mm (m3/h) | 34 / 51 |
| Dimensions WxDxH (mm) | 1775 x 1025 x 2940 |
| Weight (kg) | 1560 |
| Feed opening WxH (mm) | 1200 x 560 |
| Filling height (mm) | 1055 |
| Chamber height (mm) | 1560 |
| Stroke (mm) | 750 |
| Number of ties | 4 |
| Type of tying | Twine / Steel wire |
| Full bale light | Yes |
| Bale eject | Automatic |
| Waste volume | Medium |
Waste types
Waste Volume
Medium
FEED OPENING
1200 x 560 mm
BALE SIZE
1200 x 800 x 950 mm
PRESS FORCE
30 t
BALE WEIGHT
Cardboard (kg) : 280-350Plastic foil (kg) : 350-450
Monitor and optimise with BRA-IN
Gain full insight into your waste handling with BRA-IN – our intelligent IoT solution for balers and compactors.
With real-time data and automatic notifications, you can make better decisions, reduce operating costs, and document your environmental efforts.
BRA-IN stands for Bramidan Intelligence and connects your equipment directly to a user-friendly platform – so you can monitor fill levels, optimise collections, and schedule maintenance – all in one integrated solution.
Heading for loop
Our quiet machines mean a safer working environment
Most balers operate at a noise level of around 70-80 dB.
Bramidan balers are a much quieter alternative. To put this into perspective, a 10 dB reduction makes a significant difference – comparable to moving from the noise of a busy street to the calm of a quiet office. A lower noise level plays a crucial role in creating a safer and more comfortable working environment.
30dB
50dB
75dB
100dB
160dB
B30
62-64 dB
Whisper
Refrigerator
Other balers
Cars on highway
Turbojet engine
FAQ
VERTICAL BALER B30
Most Common Questions & Answers
Is a baler safe to operate?
Bramidan balers are very safe to operate. The safety around our solutions meets the highest standard. Our machines comply with the highest European safety standard, EN16500.
All moving parts are placed inside the machine to protect the user. To eject the finished bale the operator uses a two-hand ejection system, standing safely next to the machine.
Not relevant on COM
We offer a two-week free trial period where you can test the machine to see if it fits your needs.
After the trial period, you can either buy the machine or send it back to us. If you don’t want to keep the machine, you simply send it back to us. The only expense for you is the return transport.
Is the surface of your balers durable?
All our machines are treated with a high quality, anti-rust coating to strengthen and protect the surfaces and prevent flaky paint and rust.
What’s the difference between the B-series and the X-series balers?
B series balers are suitable for compacting cardboard, paper and dry soft plastic. All B series balers are characterised by a classic design with cylinders on top.
X series balers are our heavy-duty line of machines that are suitable for numerous types of waste materials. These balers have a low overall height due to the cross cylinders, which makes installation simple and easy. Furthermore, our X series balers have the lowest noise level in the market – an appreciable bonus for your employees and their working environment.
What can I compact in the Bramidan B-series balers?
Our B-series balers can compact cardboard, paper, and dry soft plastic.
We always recommend that you consult with a member of our sales team before you start compacting other materials in the baler.
Do I have to tie the bales myself?
Yes. All our vertical balers require manual tying. However, tying the bale is very easy with our unique tying system and only takes a few minutes.
