VERTICAL BALER

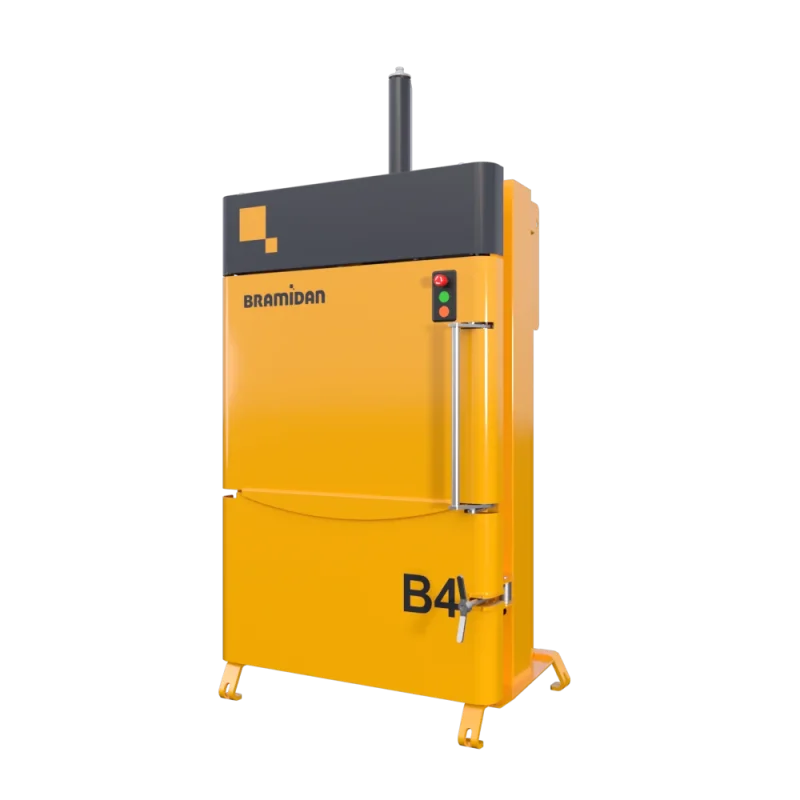

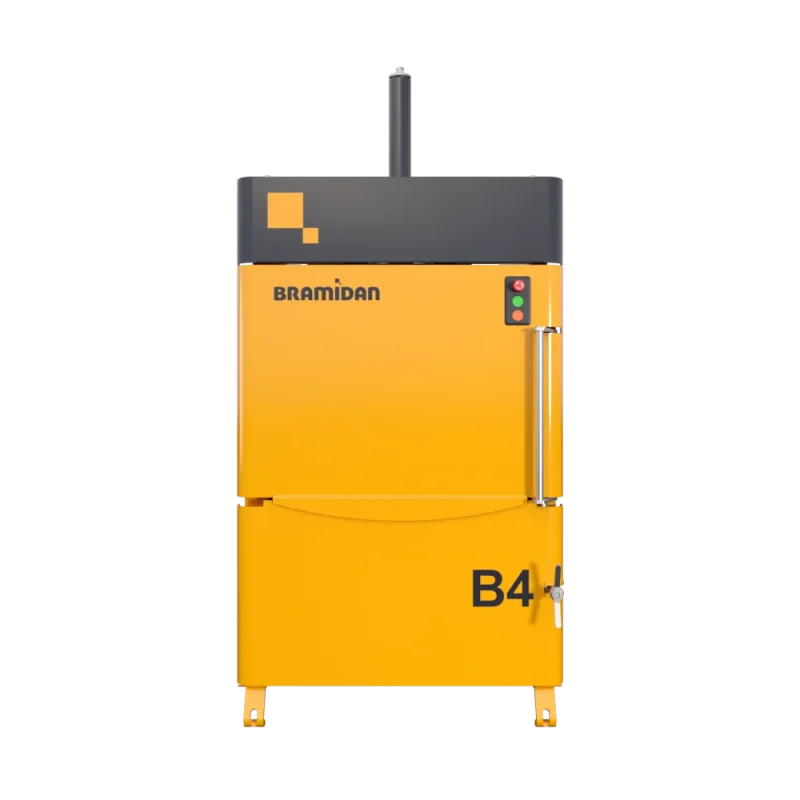

Baler B4
This B4 baler comes with nice extra features compared to other small footprint balers. With 4 tons press force, deep stroke, and efficient retainers you reach a high compaction ratio.
Colour
RAL 1007
RAL 3016
RAL 5002
RAL 5017
RAL 5021
RAL 6018
RAL 6032
RAL 7015
RAL 7035
RAL 9003
*Bramidan yellow at no extra cost. Other colors can be ordered at an additional cost.
Add to your quote
VERTICAL BALER
Baler B4
Gain remote access to your baler with our intelligent fleet monitoring system, BRA-IN. You see balers full, service status, number of collections etc. and optimize your Total Cost of Ownership.
BRA-IN, monitor your balers intelligently
Order your baler in any available RAL colour. Custom colour is not available for the top and side covers, the press plate, and the spindle. These stay our standard grey.
Other baler colours available

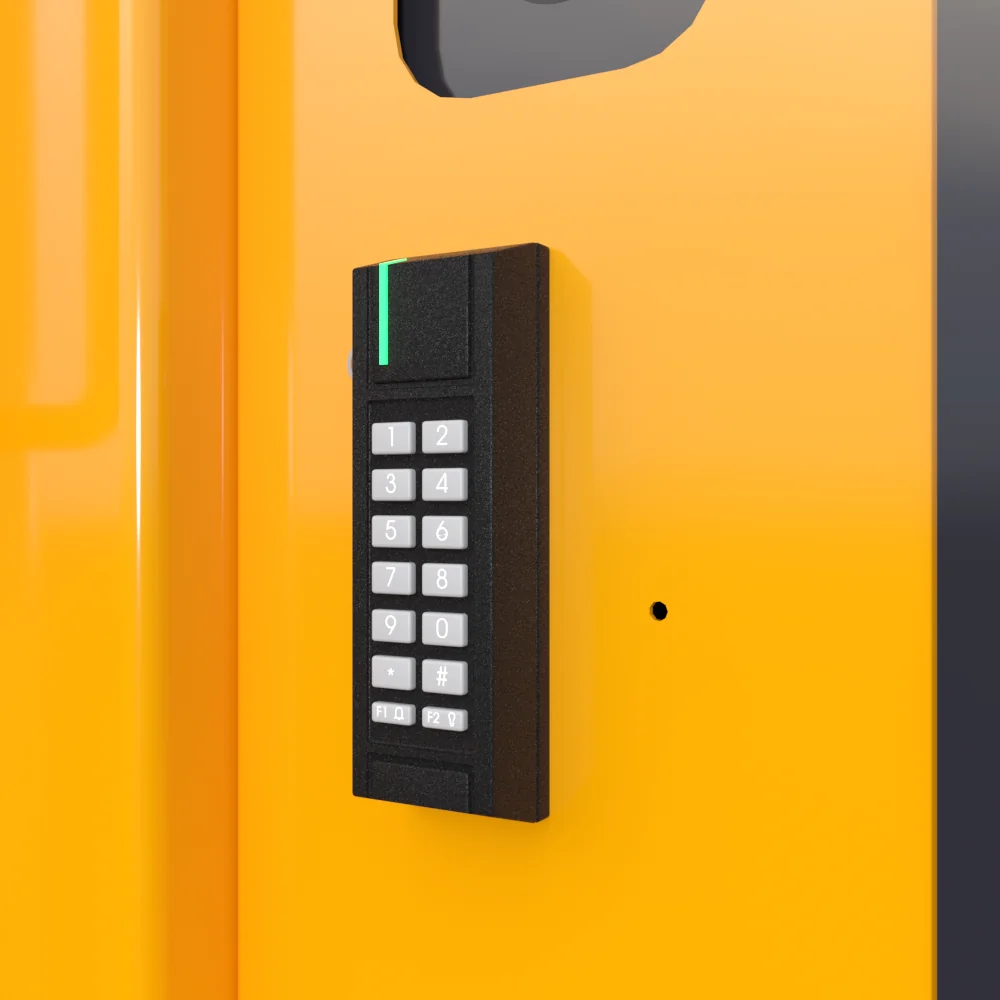

Limit access to operate the baler with an automatic lock. You unlock the baler by using a PIN code or a magnetic key tag.
Auto lock limits access to your baler

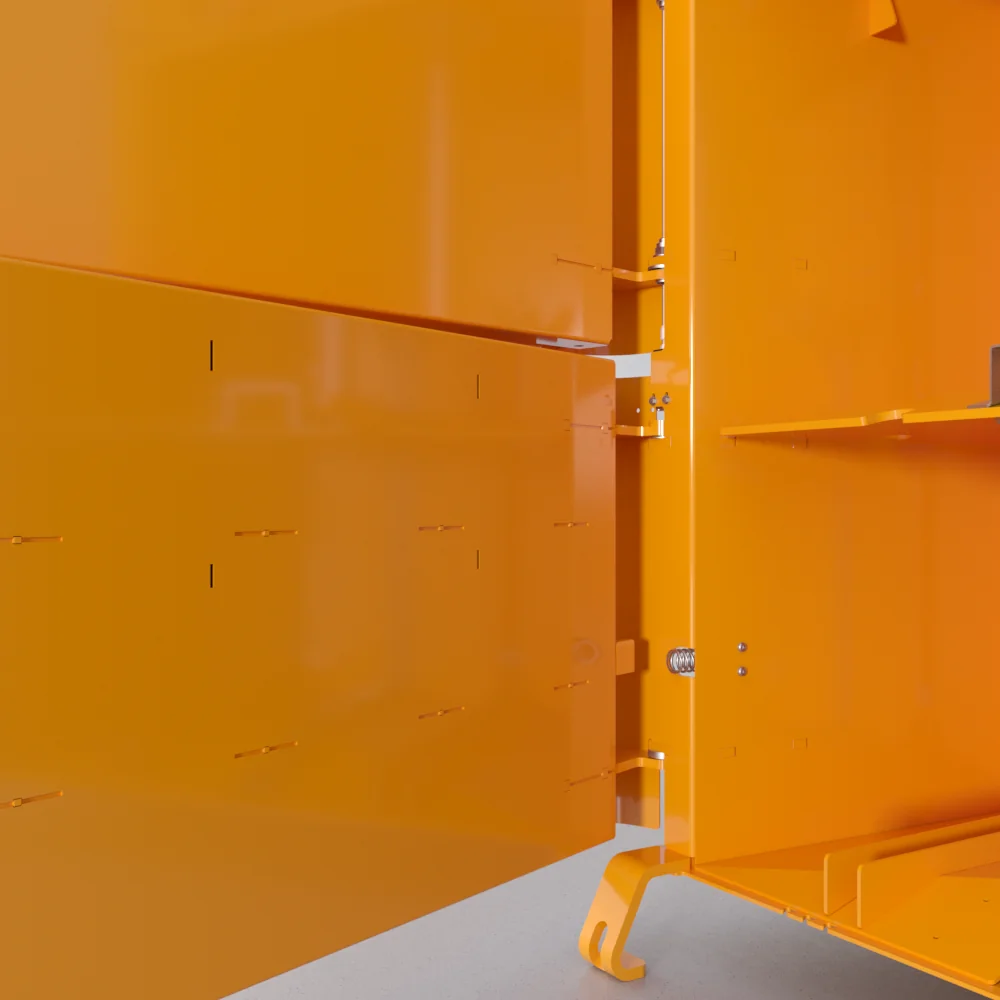

If you compact clothes for re-sale, choose a chamber with retainers removed. This will prevent damage of the clothes.
Avoid damage on clothes with no retainers
Quote details
VERTICAL BALER
Baler B4
Overview
How to operate
Safety
Technical specifications
Compact and powerful baler
The B4 is a compact baler with a small base area and low height – and a powerful press force.
Optimal working environment
You eject the finished bale by a safe two-hand operation.
B4 – Easy to fit small footprint baler:
- Simple control panel
- Automatic bale ejection
- Automatic full baler indicator
- Very low noise level
- Low overall width and height
- Compacted bales
- Front operated for installation in narrow spaces
- Single phase power connection
- Powder Coating provides durable finish in many colors
How does the B4 baler work?
Time-saving and easy waste handling
- Load your recyclables into vertical baler.
- A full-bale light tells you when the baler is full.
- Tie off and eject the compacted bale.
- Remove the bale with a pallet jack for storage untill collection.
The B4 baler is safe and easy to operate:
Our equipment has the highest level of safety – don’t settle with less!
| Bale weight cardboard (kg) | 40-60 |
| Bale weight plastic foil (kg) | 50-70 |
| Press force (t) | 4 |
| Power supply | 1x230V 50Hz 10A |
| Motor (kW) | 1.5 |
| Noise Level (dB) | 60-65 |
| Screen 40 mm (m3/h) | 28 |
| Dimensions WxDxH (mm) | 940 x 715 x 1985 |
| Weight (kg) | 300 |
| Feed opening WxH (mm) | 770 x 460 |
| Filling height (mm) | 645 |
| Chamber height (mm) | 1000 |
| Stroke (mm) | 650 |
| Number of ties | 2 |
| Type of tying | Twine |
| Full bale light | Yes |
| Bale eject | Automatic |
| Waste volume | Small |
Waste types
Waste Volume
Small
FEED OPENING
770 x 460 mm
BALE SIZE
770 x 500 x 600 mm
PRESS FORCE
4 t
BALE WEIGHT
Cardboard (kg) : 40-60
Plastic foil (kg) : 50-70
Get your machine a BRA-IN
Turn your waste data into real operational savings and effective workflows
BRA-IN is a digital management system for your balers and compactors that turns waste data into value. It gives you a simple but effective online overview of machine status, performance and service needs.
With real-time insights, automatic notifications and remote service, BRA-IN helps you optimise collections, reduce downtime and lower operating costs.
Heading for loop
Our quiet machines mean a safer working environment
Most balers operate at a noise level of around 70-80 dB.
Bramidan balers are a much quieter alternative. To put this into perspective, a 10 dB reduction makes a significant difference – comparable to moving from the noise of a busy street to the calm of a quiet office. A lower noise level plays a crucial role in creating a safer and more comfortable working environment.
30dB
50dB
75dB
100dB
160dB
B4
60-65 dB
Whisper
Refrigerator
Other balers
Cars on highway
Turbojet engine
FAQ
VERTICAL BALER B4
Most Common Questions & Answers
If I am not ready to invest in a baler, can I rent one? (not COM)
Yes, all machines can be rented or leased according to agreement with Bramidan Finance. We offer a flexible rental system. After the rental period, you can buy the baler, extend the period, or get a new machine.
How do I know which baler model I need?
What type of equipment you need depends on a number of factors: How much waste you (approx.) generate daily, what material it is, and the volume of the material. Next step is to find out how much space you have for a waste solution.
This information, combined with your company’s structure and internal work processes, forms the basis for which tailored waste solution is the perfect fit for you and your company.
Our dedicated team of specialists can help you with this decision.
How to get rid of empty shoe boxes that take up a lot of space?
Our range of small footprint balers don’t take up a lot of space and you can easily throw whole shoe boxes and boxes from boots right in.
You can find the dimensions of the filling openings of each baler under the product specifications.
How long is the press cycle?
The press cycles of our machines are very fast and range between 18 seconds to 51 seconds for the largest machines.
Is it possible to handle bales without fork lifts and ramps?
Yes, the B3 and B4 models are the right machines for that. We can set the machine to make small bales that are no heavier than 25-30 kg.
Do I have to tie the bales myself?
Yes. All our vertical balers require manual tying. However, tying the bale is very easy with our unique tying system and only takes a few minutes.
Did you find an answer to your questions? If not visit our FAQ universe.
