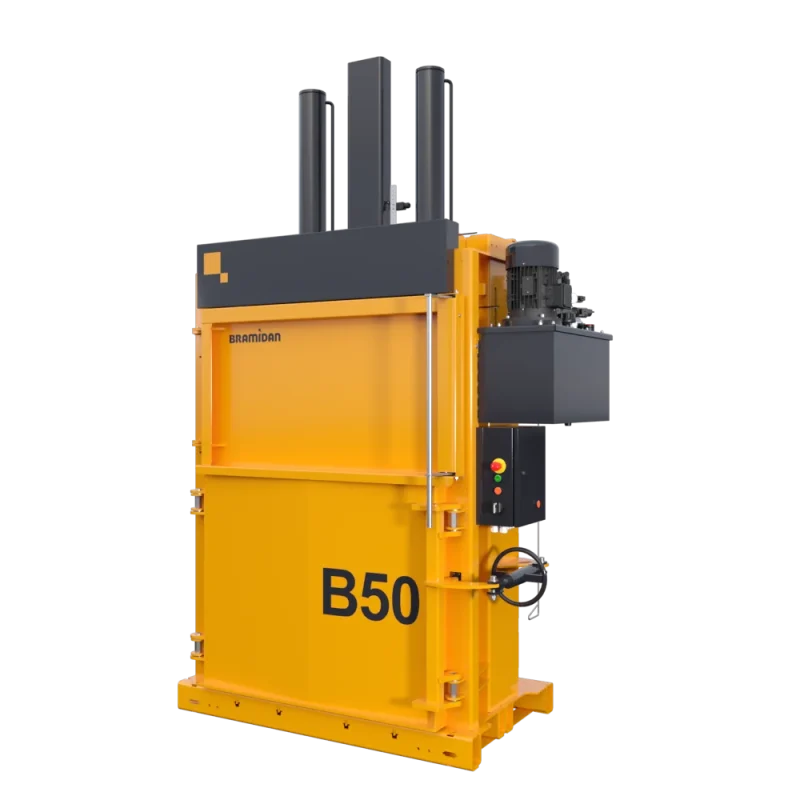

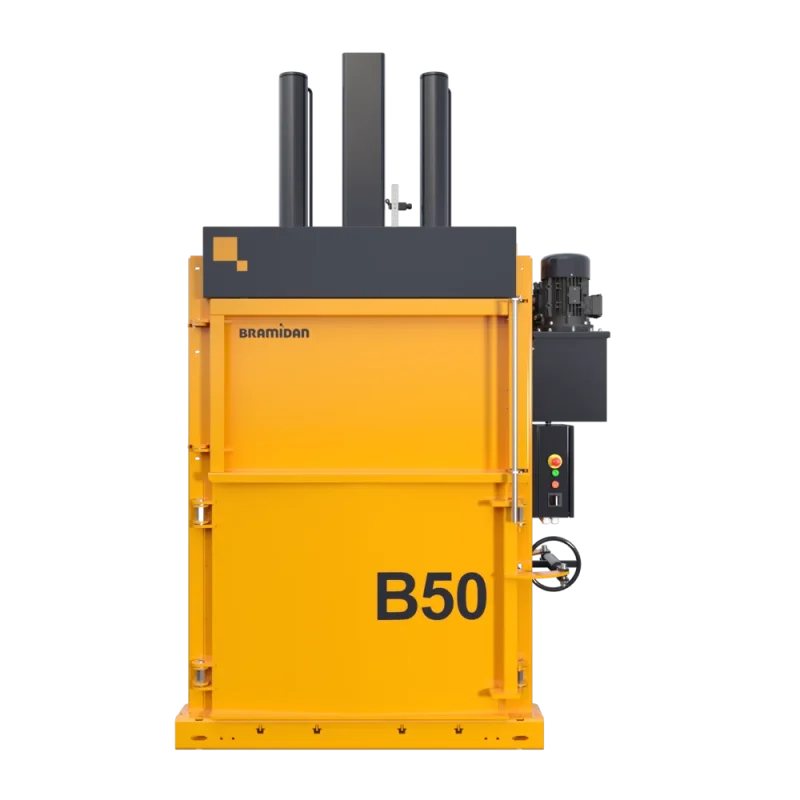

VERTICAL BALER
Baler B50
A hardworking baler for many industrial settings, the B50 has a strong press force and is designed for efficient waste handling of cardboard and dry soft plastic.
Colour
RAL 1007
RAL 3016
RAL 5002
RAL 5017
RAL 5021
RAL 6018
RAL 6032
RAL 7015
RAL 7035
RAL 9003
*Bramidan yellow at no extra cost. Other colors can be ordered at an additional cost.
Add to your quote
VERTICAL BALER
Baler B50
Equip your balers with an intelligent modem and get visualized baler location data. Plan the most effective bale collection or service route.
Use BRA-IN to optimize your baler logistics

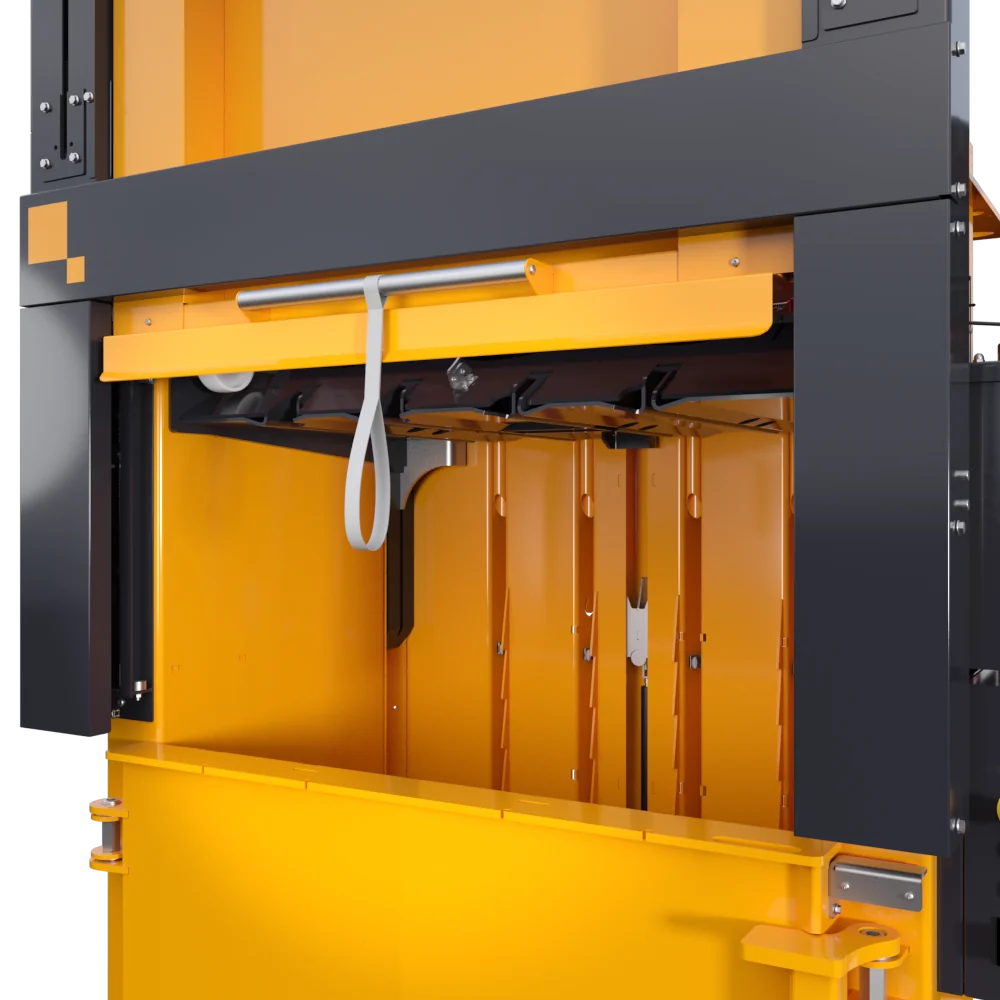

Enjoy automatic door opening. The sliding door stays open by default, which makes it convenient to fill the baler. You close it manually.
Sliding door gives you hands-free door opening
Choose a new baler colour among any RAL colour. The grey coloured top and side hood, press plate, and spindle cannot be customized.
Balers in custom colours

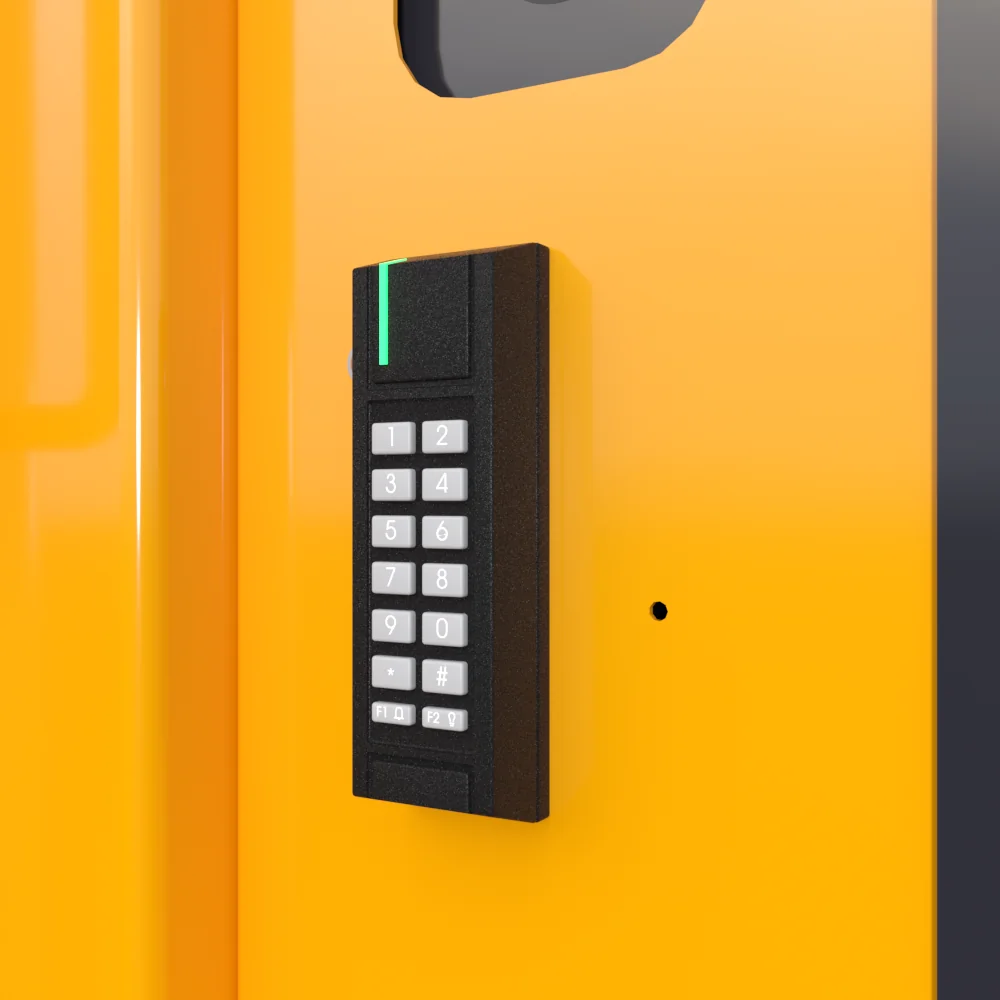

The auto lock lets you decide who can use your baler. Everyone can load it, but it requires a PIN code or a personal key tag to run press cycles.
Block access to baler controls with auto lock

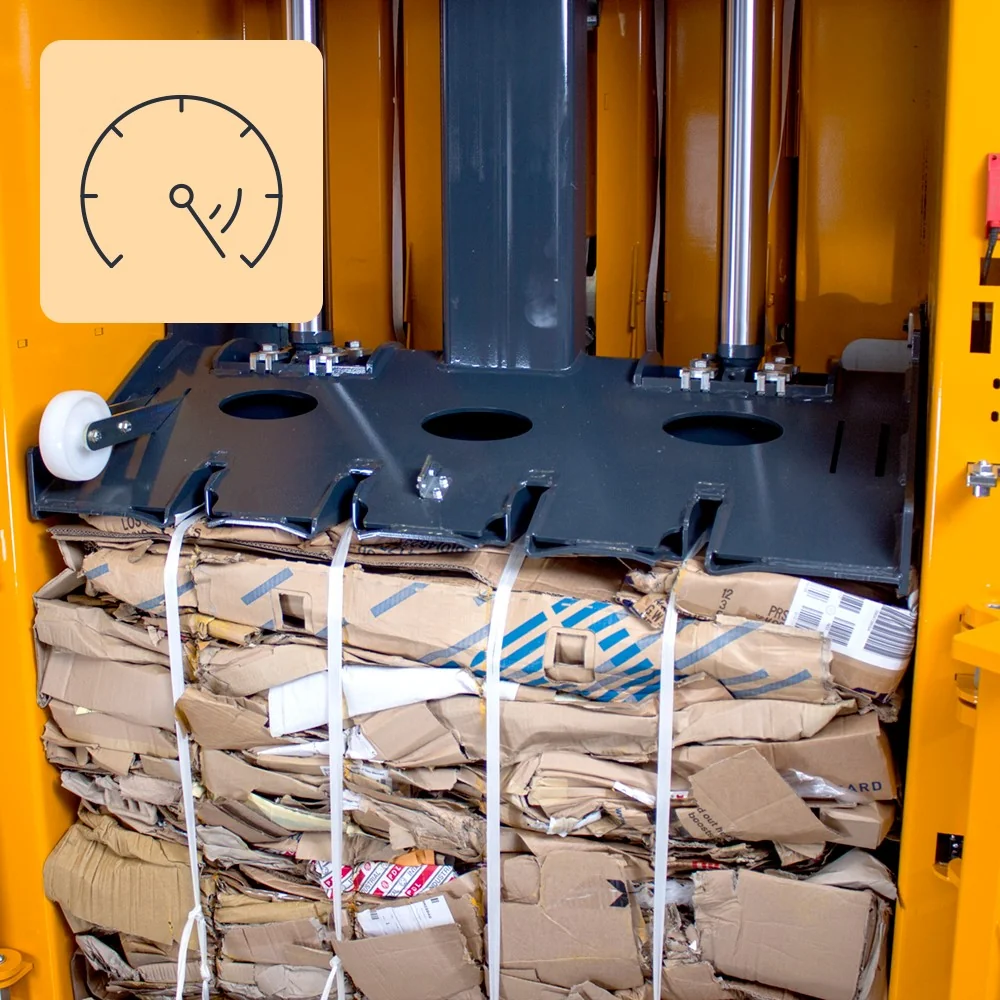

Remove loads of cardboard boxes or plastic waste in no time. Shorten the press cycle with a high-speed kit.
High speed cycle optimizes your work flow

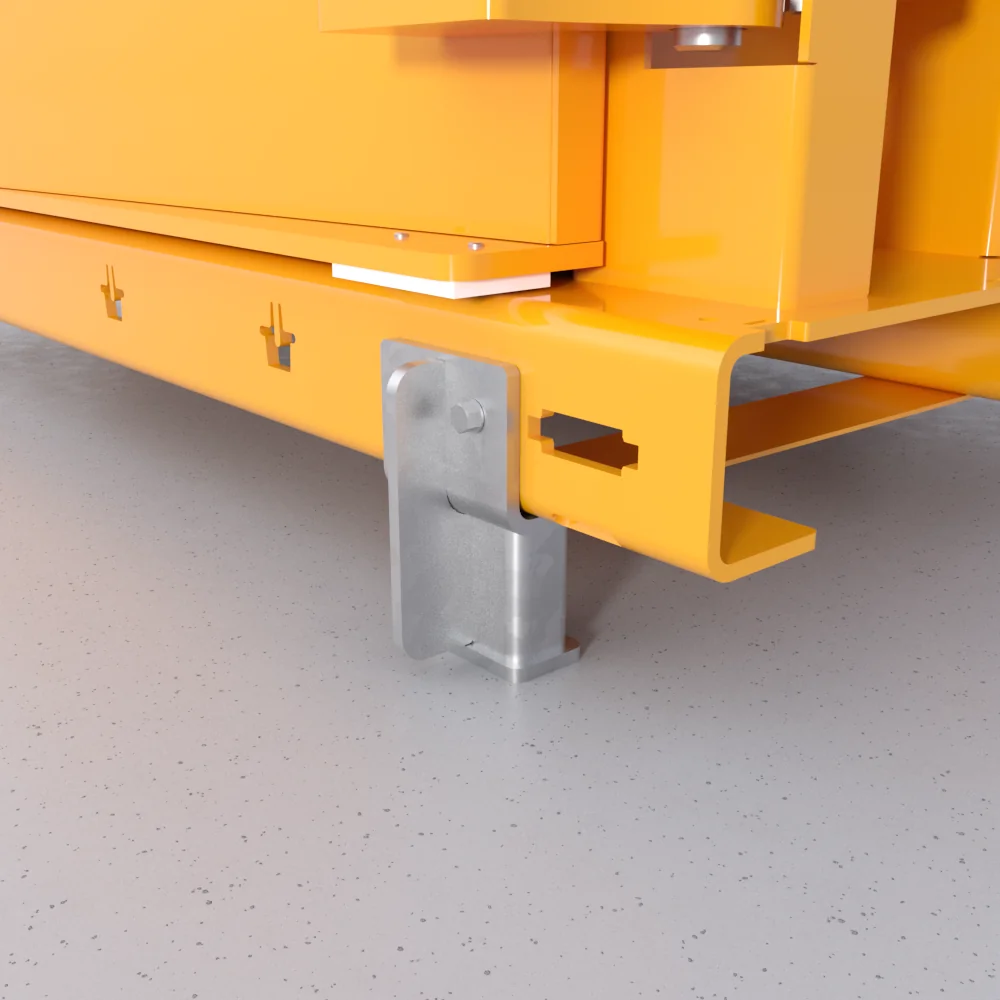

Install feet under your baler to lift it from the ground. Ideal if you need to lift the baler from the front instead of from the side.
Baler feet lets you lift your baler from the front
Quote details
VERTICAL BALER
Baler B50
Overview
How to operate
Safety
Technical specifications
For optimal transport logistics
The B50 baler offers efficient compaction into dense bales with ideal dimensions for optimal transport logistics.
Perfect pallet size bales
Bales measure 1200 mm x 800 mm x 1100 mm and fit on a standard EUR pallet.
B50 – Hard working high capacity baler:
- Machine design and demountable cylinder give a low transport height
- Uses standard 16A outlet
- Short press cycle
- Low noise level
- High compression ratio
- Produces large bales (minimum 400 kg cardboard)
- Powder Coating provides durable finish in many colors.
How does the B50 baler work?
Time-saving and easy waste handling
- Fill your plastic or cardboard waste into the baler.
- A full-light indicator tells you when the chamber is full.
- Tie off and eject the finished bale.
- Remove the bale and store until collection.
The B50 baler is safe and easy to operate:
Our equipment has the highest level of safety – don’t settle with less!
| Bale weight cardboard (kg) | 400-500 |
| Bale weight plastic foil (kg) | 450-550 |
| Press force (t) | 50 |
| Power supply | 3x400V 50Hz 16A |
| Motor (kW) | 4.0 |
| Noise Level (dB) | 62-64 |
| Screen 40 mm (m3/h) | 55 / 26 |
| Dimensions WxDxH (mm) | 1820 x 1320 x 3110 |
| Weight (kg) | 1755 |
| Feed opening WxH (mm) | 1200 x 565 |
| Filling height (mm) | 1165 |
| Chamber height (mm) | 1600 |
| Stroke (mm) | 900 |
| Number of ties | 4 |
| Type of tying | Twine / Steel wire |
| Full bale light | Yes |
| Bale eject | Automatic |
| Waste volume | Large |
Waste types
Waste Volume
Large
FEED OPENING
1200 x 565 mm
BALE SIZE
1200 x 800 x 1100 mm
PRESS FORCE
50 t
BALE WEIGHT
Cardboard (kg) : 400-500Plastic foil (kg) : 450-550
Monitor and optimise with BRA-IN
Gain full insight into your waste handling with BRA-IN – our intelligent IoT solution for balers and compactors.
With real-time data and automatic notifications, you can make better decisions, reduce operating costs, and document your environmental efforts.
BRA-IN stands for Bramidan Intelligence and connects your equipment directly to a user-friendly platform – so you can monitor fill levels, optimise collections, and schedule maintenance – all in one integrated solution.
Heading for loop
Our quiet machines mean a safer working environment
Most balers operate at a noise level of around 70-80 dB.
Bramidan balers are a much quieter alternative. To put this into perspective, a 10 dB reduction makes a significant difference – comparable to moving from the noise of a busy street to the calm of a quiet office. A lower noise level plays a crucial role in creating a safer and more comfortable working environment.
30dB
50dB
75dB
100dB
160dB
B50
62-64 dB
Whisper
Refrigerator
Other balers
Cars on highway
Turbojet engine
FAQ
VERTICAL BALER B50
Most Common Questions & Answers
Can you customize a solution for me?
Yes. The horizontal balers can be adapted to your specific needs. For this purpose, we consider your internal work flow, waste streams, types of waste, space available and preferred filling options.
What kind of technology do you offer for fleet monitoring?
We have our BRA-IN solution. A web portal for intelligent fleet monitoring based on data collected from a modem in your baler or compactor.
With BRA-IN you can:
- Get in control of your fleet of machines
- Receive a text message or email when a baler is full
- Advise your recycler directly about bales ready for collection or container to be emptied
- Tracking of the number of bales you produce over time
- Save time and money with remote service and troubleshooting
- Calculate on your Total Cost of Ownership
Is a baler difficult to operate?
No, our machines are very easy and simple to operate.
Just press a single button to start the automatic press cycle and walk away. Use the threaded spindle to open the lower hatch when the bale is finished. With our unique pre-load strapping system, tying the bale is also a very simple manoeuvre.
How long is the press cycle?
The press cycles of our machines are very fast and range between 18 seconds to 51 seconds for the largest machines.
Who will buy my bales?
Contact your local recycler who may collect and buy your stored cardboard and plastic bales.
Do you supply vertical balers that achieve minimum 400 kilo bales?
Our Large Size Balers – models B30 Wide, B50, X50 and B50 XL – produce bales that can reach 400 kilos depending on your waste material.
