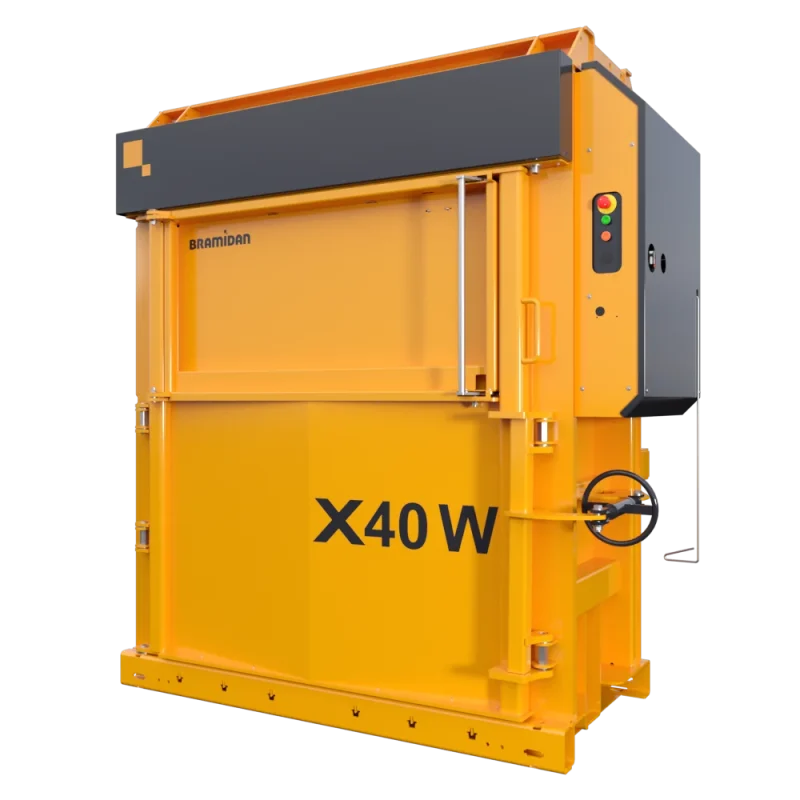

VERTICAL BALER
Baler X40 Wide
With heavy cross cylinders, the X40 Wide is ideal for applications where low ceiling and mill-sized bales are required.
Colour
RAL 1007
RAL 3016
RAL 5002
RAL 5017
RAL 5021
RAL 6018
RAL 6032
RAL 7015
RAL 7035
RAL 9003
*Bramidan yellow at no extra cost. Other colors can be ordered at an additional cost.
Add to your quote
VERTICAL BALER
Baler X40 Wide
Equip your balers with an intelligent modem and get visualized baler location data. Plan the most effective bale collection or service route.
Use BRA-IN to optimize your baler logistics
Receive your baler in a custom colour. Available in any RAL colour. Top and side cover, press plate, and spindle stay our standard grey.
Custom coloured baler

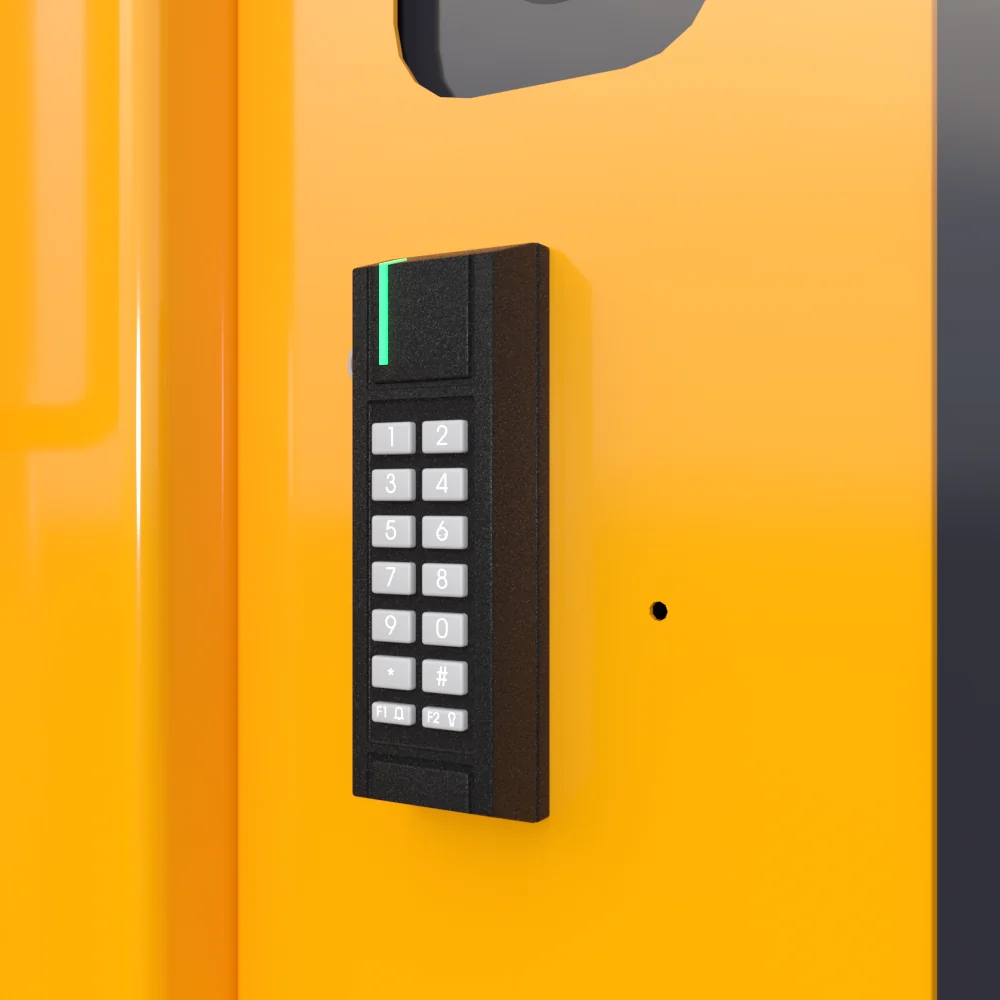

Limit access to operate the baler with an automatic lock. You unlock the baler by using a PIN code or a magnetic key tag.
Auto lock limits access to your baler
Get unobstructed filling with a fully open door. The door stop keeps the baler door open at 180 degrees.
Keep baler door open with door stop

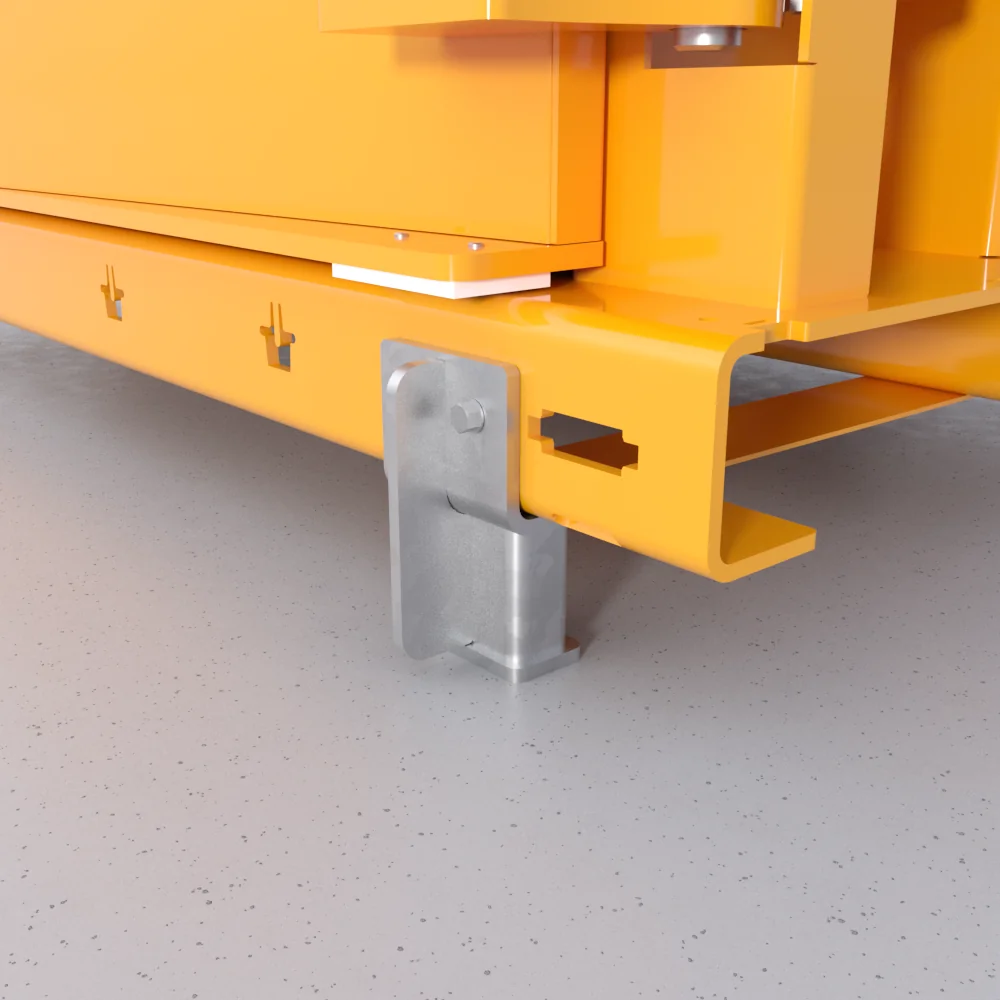

Lift the baler from the ground for easy cleaning underneath or manoeuvring into a narrow space.
Baler feet lift your baler from the ground
Quote details
VERTICAL BALER
Baler X40 Wide
Overview
How to operate
Safety
Technical specifications
Low profile design
Model X40 Wide is a low profile machine that fits installed under an 2,4 meter ceiling, and still makes a full 375 kg cardboard bale.
Many types of recyclables
This heavy duty low profile baler can handle plastic bottles, alu cans as well as cardboard and stretch wrap.
X40 Wide – mill-sized baler for different recyclables:
- Minimum 375 kg bale of cardboard
- Less than 2,36 metre installed height
- Can be used for cardboard, stretch wrap, PET, alu cans etc.
- Low noise powerpack — noise level like an office printer
- Powder Coating provides durable finish in many colors
How does the X40 Wide baler work?
Time-saving and easy waste handling
- Load your recyclables into vertical baler.
- A full-bale light tells you when the baler is full.
- Tie off and eject the compacted bale.
- Remove the bale with a pallet jack for storage untill collection.
The X40 Wide baler is safe and easy to operate:
Our equipment has the highest level of safety – don’t settle with less!
| Bale weight cardboard (kg) | 375-550 |
| Bale weight plastic foil (kg) | 400-600 |
| Press force (t) | 40 |
| Power supply | 3x400V 50Hz 16A |
| Motor (kW) | 4.0 |
| Noise Level (dB) | 59-60 |
| Screen 40 mm (m3/h) | 40 |
| Dimensions WxDxH (mm) | 2080 x 1255 x 2340 |
| Weight (kg) | 2200 |
| Feed opening WxH (mm) | 1415 x 520 |
| Filling height (mm) | 1175 |
| Chamber height (mm) | 1540 |
| Stroke (mm) | 1090 |
| Number of ties | 6 |
| Type of tying | Twine / Steel wire |
| Full bale light | Yes |
| Bale eject | Automatic |
| Waste volume | Large |
Waste Volume
Large
FEED OPENING
1415 x 520 mm
BALE SIZE
1550 x 800 x 1100 mm
PRESS FORCE
40 t
BALE WEIGHT
Cardboard (kg) : 375-550
Plastic foil (kg) : 400-600
Get your machine a BRA-IN
Turn your waste data into real operational savings and effective workflows
BRA-IN is a digital management system for your balers and compactors that turns waste data into value. It gives you a simple but effective online overview of machine status, performance and service needs.
With real-time insights, automatic notifications and remote service, BRA-IN helps you optimise collections, reduce downtime and lower operating costs.
Heading for loop
Our quiet machines mean a safer working environment
Most balers operate at a noise level of around 70-80 dB.
Bramidan balers are a much quieter alternative. To put this into perspective, a 10 dB reduction makes a significant difference – comparable to moving from the noise of a busy street to the calm of a quiet office. A lower noise level plays a crucial role in creating a safer and more comfortable working environment.
30dB
50dB
75dB
100dB
160dB
X40 Wide
59-60 dB
Whisper
Refrigerator
Other balers
Cars on highway
Turbojet engine
FAQ
VERTICAL BALER X40 Wide
Most Common Questions & Answers
How large are the bales made by a vertical baler?
The size and weight of the bale depends on waste type and the size of your baler.
Machines in our series of small footprint balers make bales that are easy to handle. Baler models B3 and B4 can even be set to make bales that are no heavier than 25-30 kg.
Bales from our small series weigh between 30-100 kg (for cardboard) and 40-130 kg (for plastic). Such bales can easily be removed from the baler with a trolley. Simply eject the bale onto the trolley and move it.
Bales made by machines in our range of Medium Sized Balers fit on a standard EUR pallet. They weigh between 200-350 kg (for cardboard bales) and 250-450 kg (for plastic bales), and you remove them with a pallet truck or fork lift.
Our Large Size Balers compact bales as heavy as 375-600 kg (cardboard) and 400-650 (plastic).
If you want to know the exact measurements of the bales, please check the machine specifications.
Is a baler noisy?
Our balers are extremely silent. They are equipped with advanced state of the art power packs, which make them the most silent balers in the market. In general, our balers make the same noise as a printer or regular face to face conversation. This means that they can easily be placed close to work spaces without affecting the working environment negatively.
Do I need a baler or a compactor?
What type of waste handling equipment you need depends on different factors: How much waste you gather on a daily basis, but also the type and size of it. You also have to consider how much space you have for a waste solution.
This information, combined with your company’s structure and internal work processes, forms the basis for which tailored waste solution is the perfect fit for you and your company.
Our sales consultants can help you with the right decision.
Can I compact cans?
Yes, you may use a baler for compacting light metal waste like food cans and aluminium cans.
You need a baler with a relatively high press force to compact empty aluminium cans. It is important that the material is well compacted from the very first press cycle. Our X-series balers, which have cross cylinders with long cylinder strokes, are very suitable for this purpose.
We recommend that you put a layer of cardboard at the bottom and on top of the bale to keep it stable. Sometimes you might also benefit from wrapping the finished bale with plastic film.
Do you have a baler that can handle wide boxes from TVs?
Don’t worry. Most of our balers can effortlessly handle boxes from 60” widescreen TVs.
Our widest baler, the B30 Wide and X40 Wide, can even handle empty packaging from 65” widescreen TVs, and you need not break down the boxes first. Look for the dimensions of the filling openings of each baler under the product specifications.
What can I compact in the Bramidan X-series balers?
Our X-series balers can compact many different materials. Besides cardboard, paper, and dry soft plastic, they can also be used for big bags, plastic bottles (PET), expandable plastic, aluminium and tin cans.
Please contact our sales team before you compact other materials in your baler.
