VERTICAL BALER
Baler B3
The model B3 is the right choice of baler when you want to combine high compaction with a small footprint and low height. It fits where you need it.
Colour
RAL 1007
RAL 3016
RAL 5002
RAL 5017
RAL 5021
RAL 6018
RAL 6032
RAL 7015
RAL 7035
RAL 9003
*Bramidan yellow at no extra cost. Other colors can be ordered at an additional cost.
Add to your quote
VERTICAL BALER
Baler B3
Gain remote access to your baler with our intelligent fleet monitoring system, BRA-IN. You see balers full, service status, number of collections etc. and optimize your Total Cost of Ownership.
BRA-IN, monitor your balers intelligently
Receive your baler in a custom colour. Available in any RAL colour. Top and side cover, press plate, and spindle stay our standard grey.
Custom coloured baler

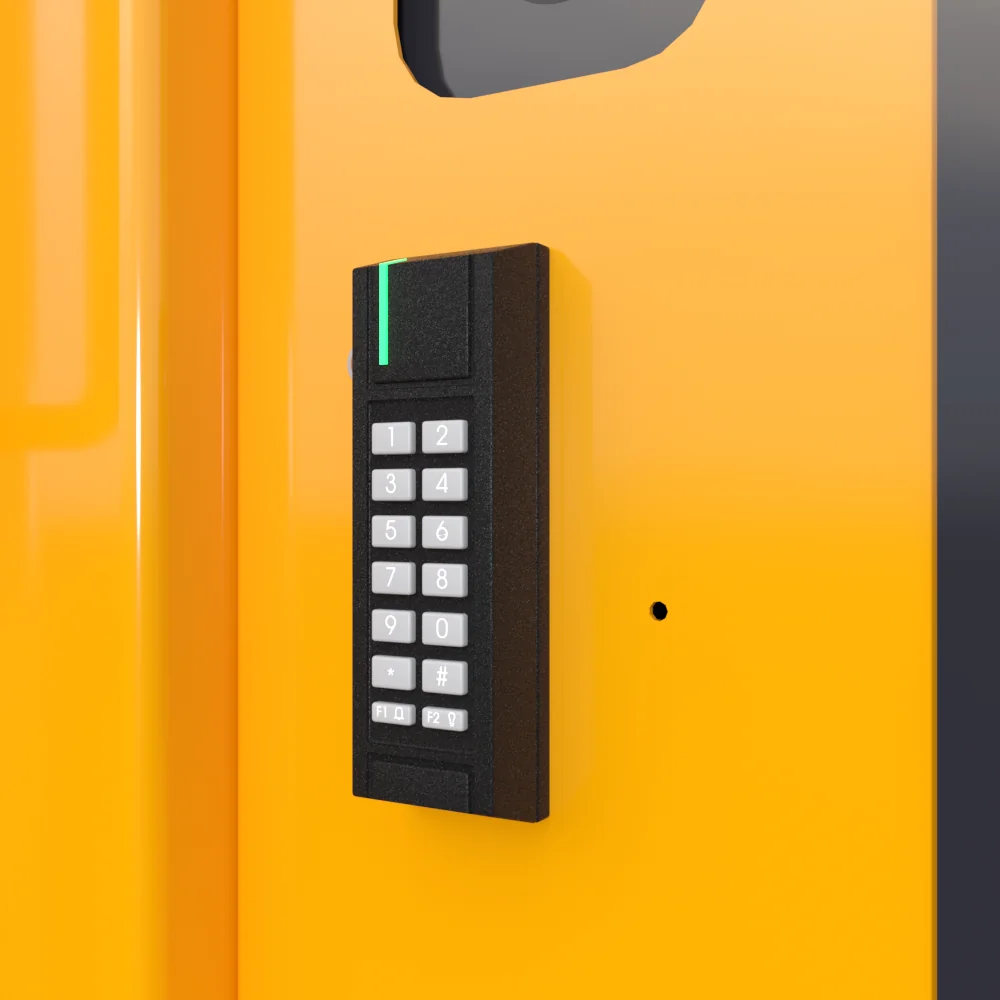

Limit access to operate the baler with an automatic lock. You unlock the baler by using a PIN code or a magnetic key tag.
Auto lock limits access to your baler
Quote details
VERTICAL BALER
Baler B3
Overview
How to operate
Safety
Technical specifications

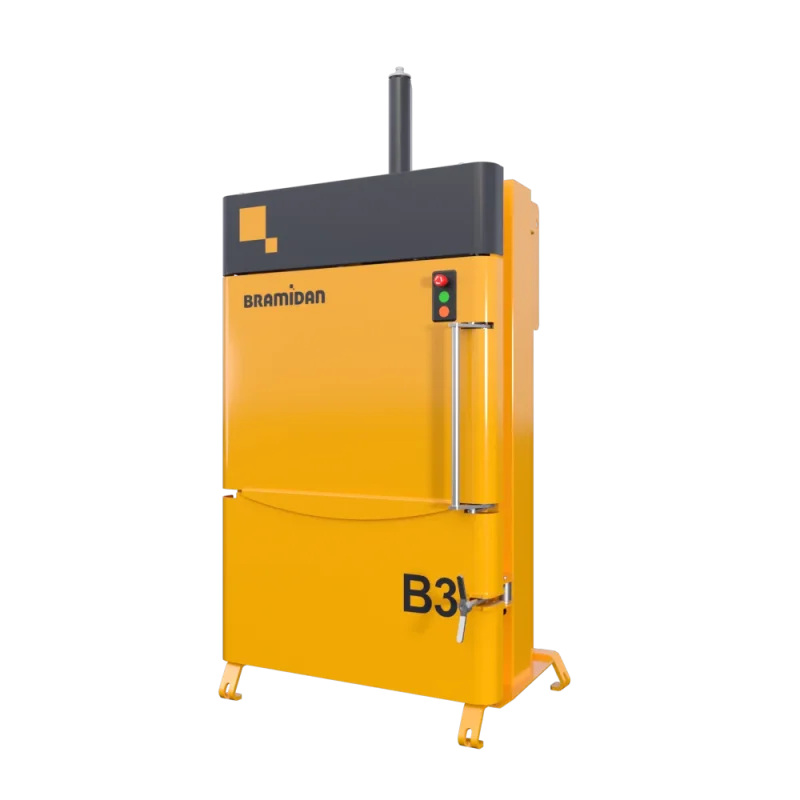

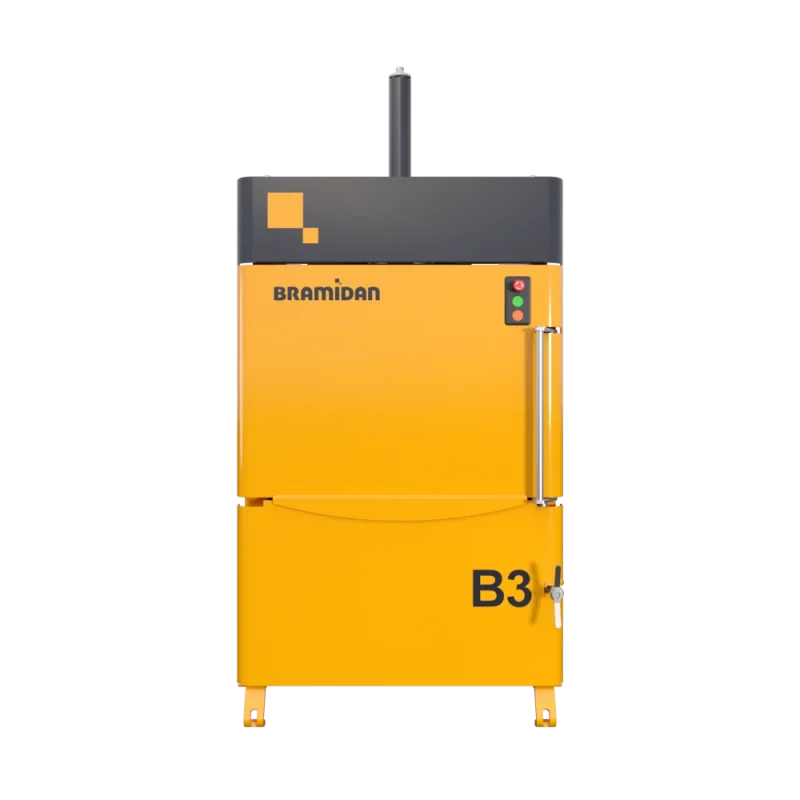

Small footprint baler
The B3 combines high compaction with a small base area and low height. It fits where you need it.
Handle bales easily
You can easily remove the finished bale with the hand cart included.
B3 – Small footprint baler for narrow spaces:
- Simple and safe to use
- Small manageable bales
- Easy installation
- Small base area (0,67 m2) and low overall height
- Operates on single phase power supply
- Safe and controlled opening of the lower door
- Powder Coating provides durable finish in many colors
How does the B3 baler work?
Time-saving and easy waste handling
- Load your recyclables into vertical baler.
- A full-bale light tells you when the baler is full.
- Tie off and eject the compacted bale.
- Remove the bale with a pallet jack for storage untill collection.
The B3 baler is safe and easy to operate:
Our equipment has the highest level of safety – don’t settle with less!
| Bale weight cardboard (kg) | 30-50 |
| Bale weight plastic foil (kg) | 40-60 |
| Press force (t) | 3 |
| Power supply | 1x230V 50Hz 10A |
| Motor (kW) | 1.1 |
| Noise Level (dB) | 60-65 |
| Screen 40 mm (m3/h) | 24 |
| Dimensions WxDxH (mm) | 940 x 715 x 1985 |
| Weight (kg) | 290 |
| Feed opening WxH (mm) | 770 x 460 |
| Filling height (mm) | 645 |
| Chamber height (mm) | 1000 |
| Stroke (mm) | 550 |
| Number of ties | 2 |
| Type of tying | Twine |
| Full bale light | Yes |
| Bale eject | Manual |
| Waste volume | Small |
Waste types
Waste Volume
Small
FEED OPENING
770 x 460 mm
BALE SIZE
770 x 500 x 600 mm
PRESS FORCE
3 t
BALE WEIGHT
Cardboard (kg) : 30-50
Plastic foil (kg) : 40-60
Get your machine a BRA-IN
Turn your waste data into real operational savings and effective workflows
BRA-IN is a digital management system for your balers and compactors that turns waste data into value. It gives you a simple but effective online overview of machine status, performance and service needs.
With real-time insights, automatic notifications and remote service, BRA-IN helps you optimise collections, reduce downtime and lower operating costs.
Heading for loop
Our quiet machines mean a safer working environment
Most balers operate at a noise level of around 70-80 dB.
Bramidan balers are a much quieter alternative. To put this into perspective, a 10 dB reduction makes a significant difference – comparable to moving from the noise of a busy street to the calm of a quiet office. A lower noise level plays a crucial role in creating a safer and more comfortable working environment.
30dB
50dB
75dB
100dB
160dB
B3
60-65 dB
Whisper
Refrigerator
Other balers
Cars on highway
Turbojet engine
FAQ
VERTICAL BALER B3
Most Common Questions & Answers
Is a baler noisy?
Our balers are extremely silent. They are equipped with advanced state of the art power packs, which make them the most silent balers in the market. In general, our balers make the same noise as a printer or regular face to face conversation. This means that they can easily be placed close to work spaces without affecting the working environment negatively.
How to get rid of empty shoe boxes that take up a lot of space?
Our range of small footprint balers don’t take up a lot of space and you can easily throw whole shoe boxes and boxes from boots right in.You can find the dimensions of the filling openings of each baler under the product specifications.
How large are the bales made by a vertical baler?
The size and weight of the bale depends on waste type and the size of your baler.Machines in our series of small footprint balers make bales that are easy to handle. Baler models B3 and B4 can even be set to make bales that are no heavier than 25-30 kg.Bales from our small series weigh between 30-100 kg (for cardboard) and 40-130 kg (for plastic). Such bales can easily be removed from the baler with a trolley. Simply eject the bale onto the trolley and move it.Bales made by machines in our range of Medium Sized Balers fit on a standard EUR pallet. They weigh between 200-350 kg (for cardboard bales) and 250-450 kg (for plastic bales), and you remove them with a pallet truck or fork lift.Our Large Size Balers compact bales as heavy as 375-600 kg (cardboard) and 400-650 (plastic).
If you want to know the exact measurements of the bales, please check the machine specifications.
Not relevant on COM
We offer a two-week free trial period where you can test the machine to see if it fits your needs.After the trial period, you can either buy the machine or send it back to us. If you don’t want to keep the machine, you simply send it back to us. The only expense for you is the return transport.
Can people under the age of 18 years operate your balers?
All our machines can be operated by everyone – also people under the age of 18 years. However, you must be 18 years or older to empty machines larger than our B3. Due to the built-in safety mechanisms, it only requires a short instruction before all employees can operate the machine safely.
Is a baler difficult to operate?
No, our machines are very easy and simple to operate.Just press a single button to start the automatic press cycle and walk away. Use the threaded spindle to open the lower hatch when the bale is finished. With our unique pre-load strapping system, tying the bale is also a very simple manoeuvre.
